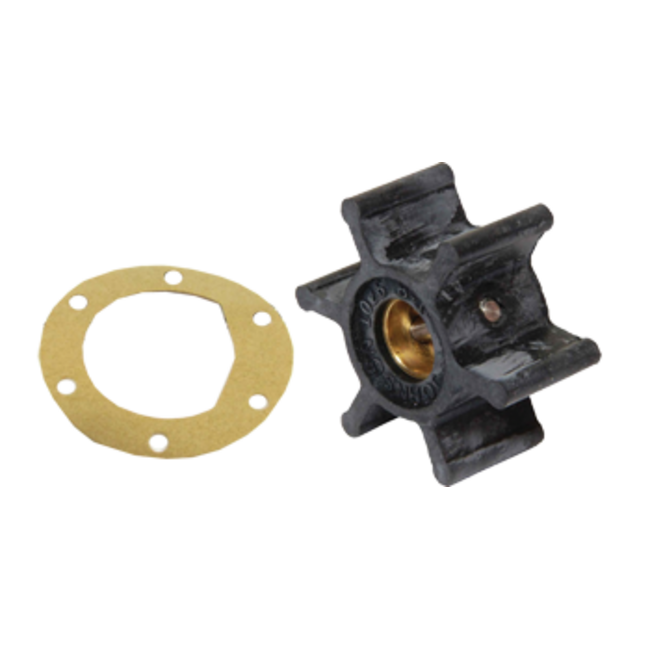

The Johnson Pump 09-1026B-1 is a genuine, high-performance flexible marine impeller kit designed primarily for engine cooling and general water-transfer duties in F4-series pumps.This 6-blade model is manufactured from Johnson's proprietary MC97 rubber compound (an advanced EPDM blend), which provides a significantly extended service life compared to traditional neoprene by resisting thermal breakdown and stabilizing the blades under pressure. Dimensionally, the impeller features an outer diameter of 50.8 mm (2.00 inches), a width of 22.0 mm (0.87 inches), and a 12.7 mm (0.50 inch) inner diameter designed for a slotted pin drive shaft setup. Because engine cooling is so vital to preventing catastrophic boat engine failures, this specific kit serves as a highly reliable direct OEM replacement for various Volvo Penta, Perkins, and Westerbeke engines, while seamlessly crossing over to replace popular competitors like the Jabsco 673-0001.

Features:

• Provides a significantly long service life
• Designed for maximum flow
• Genuine replacement for worn or damaged impeller
• Replaces Jabsco 6303-001
• For use in Johnson Pump's F4 Pump

Specifications:

• Pump: F4
• Number of Blades: 6
• Shaft Drive: Pin
• Material: MC97 (Use MC97 and Neoprene for Cooling Systems)
• Outside Diameter: 50.8 mm / 2"
• Inside Diameter: 12.7 mm / 0.50"
• Width: 22 mm / 0.87"
• Replaces Jabsco: 6303-001
