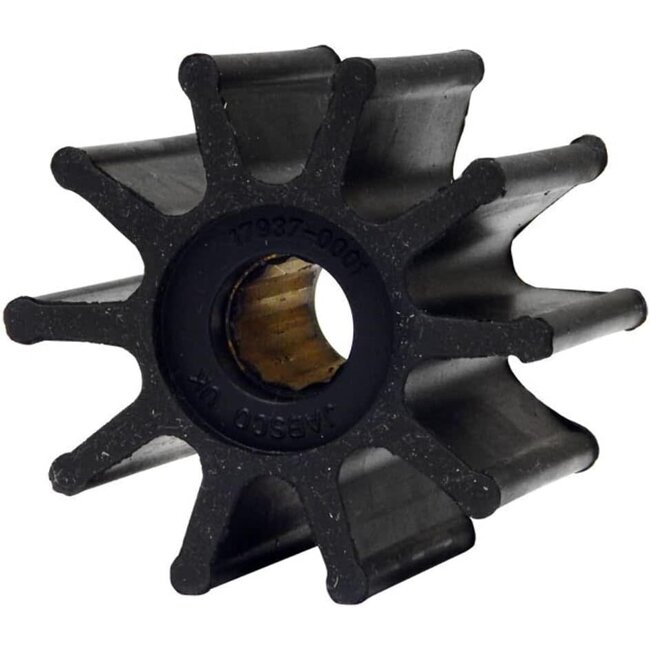

Jabsco 17937-0001-P Engine Cooling Impeller Service Kit

Replaces MAN, Ford Lehman and cross references to the following; Volvo 801277, 825941, 877061-2, Yanmar 127610-42200, Cat 7C-3286, Johnson 09-1028B, Sherwood 18200, Vetus IMP00301, Ancor J050009, CEF 500114, Oberdorfer 7441 and Perkins USA 0460024 and 24880031.

17937-0001-P Dimensions:
Profile: Y
Number of Blades: 10
Diameter: 2-9/16" (65 mm)
Width: 2" (51 mm)
Shaft Diameter: 5/8" (16 mm)
Drive Type: Spline Drive
Material: Neoprene
Insert Material: Brass
See Jabsco Marine Identification Guide image and Jabsco Impeller Catalog 2009 to confirm your replacement

Jabsco Flexible Impellers are subjected to rigorous quality processes to ensure reliable, efficient and long lasting performance.

Use Neoprene Impellers for engine cooling, and for fresh or salt water transfer duties. Neoprene is the most commonly used material and is suitable for use where only small amounts of oil or diesel fuel are present.
Use Nitrile Impellers for bilge pumping, and for transfer duties where the water is heavily contaminated, for example by oil or diesel.
Replace all impellers at least once every year, or sooner, depending on the engine duty. When the installation is correct an impeller may last for several years, but it is always advisable to stick to a schedule of preventative, rather than corrective, maintenance.

Replacing impellers is easy. By removing the end cover screws, it is possible to remove the impeller by using an Impeller Removal Tool, or channel lock pliers, to grip the hub of smaller impellers. Do not use screwdrivers as they may possibly damage the face of the pump body, causing leaks, or damage to the new impeller.

Always carry spare Impellers on-board in case of an emergency. The Impeller is one of the most vital components of the engine cooling system and should always be treated as such.

Always grease new impellers. Firstly, it makes it easier to install the impeller into the pump bore, and secondly it gives added protection to the impeller during initial prime. After replacing the gasket and end cover the pump is ready to use.
