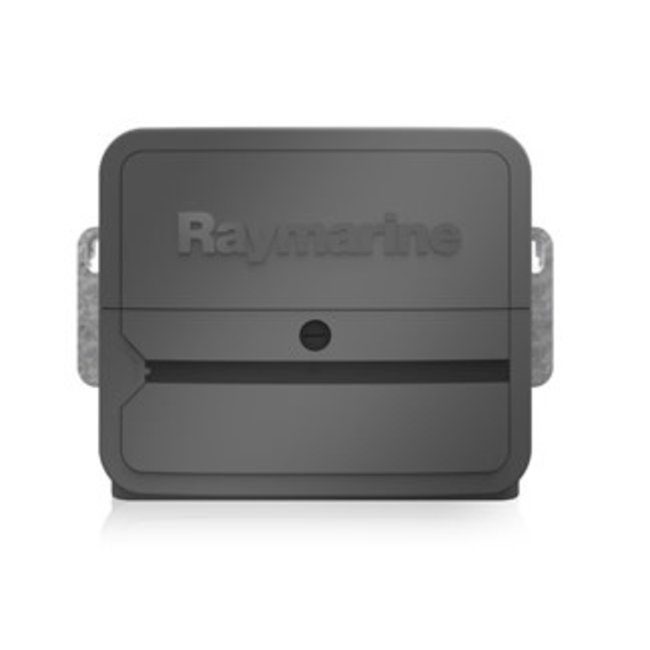

ACU-100

• Nominal power supply: 12 V
• Operating voltage range: 10.8 V to 15.6 V dc
• Drive current output: maximum continuous 7 A a supply voltage
• Drive clutch output: no cluch connection
• Connections: rudder reference sensor, power, drive motor, ground
• Power consumption (standby): main power supply, 300 mA (12 V)
• Power consumption (standby): SeaTalkng power supply, no power supply to SeaTalkng
• SeaTalkng LEN (Load Equivalency Number): 1
• SeaTalkng power out: no power supply to SeaTalkng
• Data connections: SeaTalkng
• Installation environment:
• Operating temperature: -20ºC to +55ºC (-4ºF to +131ºF)
• Storage temperature: -30ºC to +70ºC (-22ºF to +158ºF)
• Relative humidity: max 93%
• Waterproof rating: connector panel - IPX2, drive electronics - IPX6
• Conformance:
• Europe: 2004/108/EC
• Australia and New Zealand: C-Tick, Compliance Level 2
