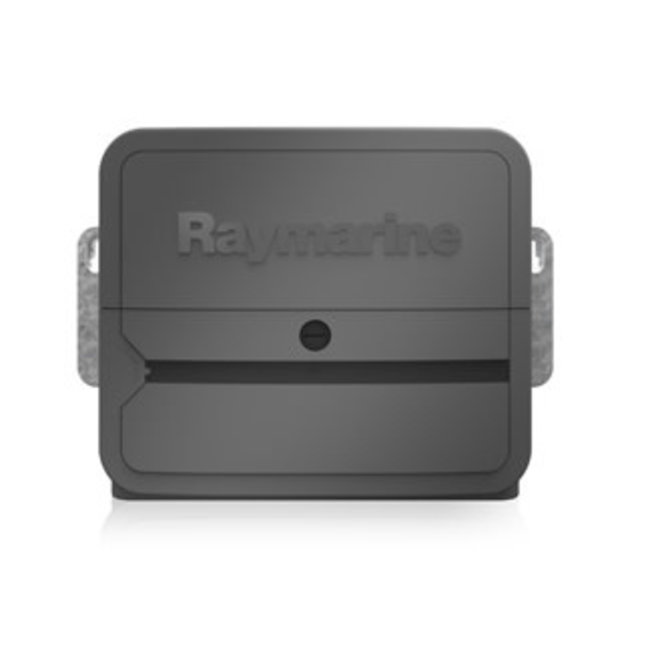

ACU-400

• Nominal power supply: 12 V or 24 V
• Operating voltage range: 10.8 V to 31.2 V dc
• Drive current output: maximum continuous 30 A at supply voltage
• Drive clutch output: up to 4 A continuous at - 12 V on 12 V systems, 24 V on 24 V systems, 12 V on 24 V systems
• Connections: rudder reference sensor, sleep switch, power, drive motor, drive clutch, ground, digital input/output
• Power consumption (standby): main power supply, 300 mA (12/24 V)
• Power consumption (standby): SeaTalkng power supply,20 mA (12 V)
• SeaTalkng LEN (Load Equivalency Number): 1
• SeaTalkng power out: 3 A at 12 V (fuse protected at 3 A)
• Data connections: SeaTalkng
• Installation environment:
• Operating temperature: -20ºC to +55ºC (-4ºF to +131ºF)
• Storage temperature: -30ºC to +70ºC (-22ºF to +158ºF)
• Relative humidity: max 93%
• Waterproof rating: Drip resistant
• Conformance:
• Europe: 2004/108/EC
• Australia and New Zealand: C-Tick, Compliance Level 2
