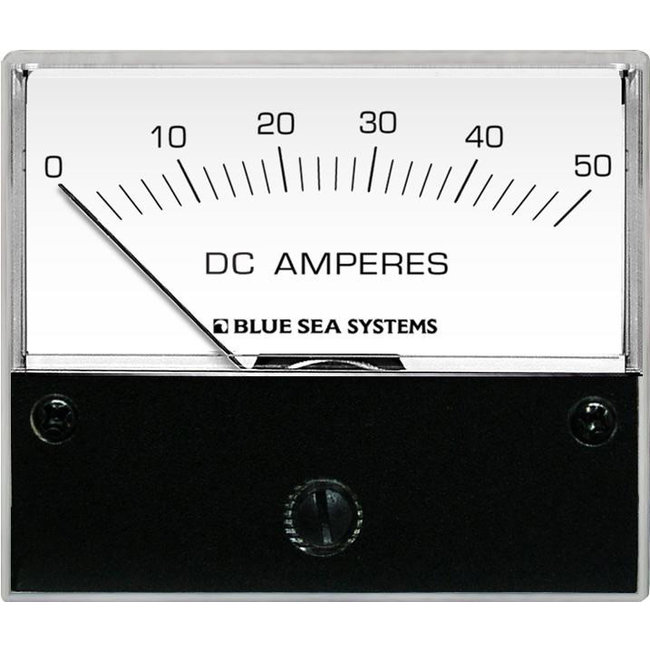

Ammeter DC 0-50Amp + Shunt
C$148.95Excl. tax
In stock
DC Analog Ammeter - 0 to 50A with Simple 4-wire connection from shunt Meter senses and powers from shunt connection Internal DC Shunt Backlit meter face (separate 12 or 24V DC backlight connections) M Read more..
Product description
DC Analog Ammeter - 0 to 50A with
- Simple 4-wire connection from shunt
- Meter senses and powers from shunt connection
- Internal DC Shunt
- Backlit meter face (separate 12 or 24V DC backlight connections)
- Meter: Current
- Face Size: 2.75in (69.85 mm)
- Function: 0 to 50A
- Backlighting Amperage: 16mA @ 12V DC, 20mA @ 24V DC
- Meter Current: 1mA at full scale
- Shunt Type: External 50mV@full scale
Reviews
0 reviews
Specifications
Article number
BS8022
EAN Code
632085080228
SKU
BS8022
