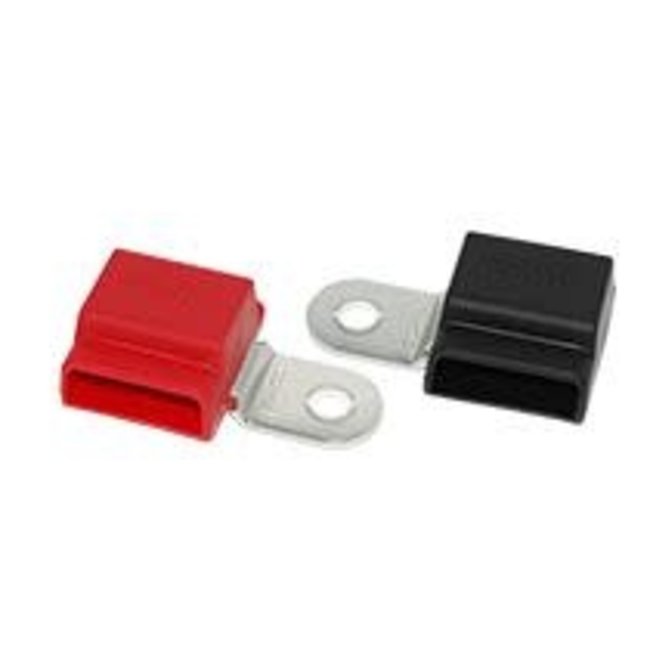

Battery Terminal Mount BusBars

Features:

• Easily add positive and negative busbars directly to a threaded-post battery terminal
• Tin-plated pure electrical copper for maximum conductivity
• Insulating covers meet ABYC/USCG insulation requirements
• Screw terminals for securing wires
• Includes four 16-14 AWG and four 12-10 AWG Nylon insulated ring terminals

Specs:

• Maximum Voltage: 32V DC
• Continuous Rating (Maximum current a switch is designed to conduct for an indefinite period): 100A DC
• Bus Material: Tin-Plated Copper C11000
• Mounting Hole: Clearance for Ø3/8 [M10] stud
• Screw Terminal Type: #8-32 Screws with Captive Star Lock washer
