Charging Relay Mini ACR Automatic
Charging Relay Mini ACR Automatic

Charging Relay Mini ACR Automatic

C$125.95Excl. tax
In stock

Product description

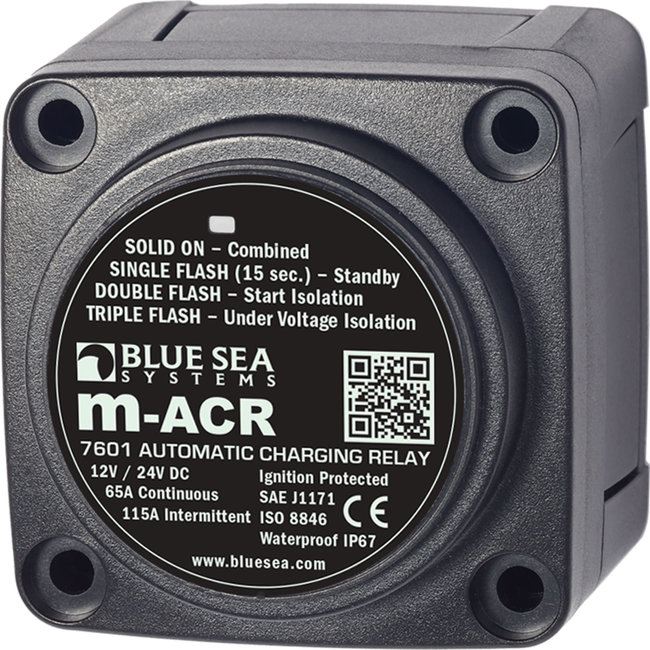

m-Series Automatic Charging Relay - 12/24V DC 65A

  • Senses charging on two battery banks
  • Pull off and snap on insulating cover
  • LED indicates ACR status
  • 1 /4" x .032" male quick connect terminal for ground
  • 7/ 16" (11 mm) stud length to accept multiple cable terminals
  • Waterproof – rated IP67 for temporary immersion
  • Nominal Voltage: 12V DC, 24V DC
  • Start Isolation: Yes
  • Amperage Operating Current: 90mA (Combine), 15mA (Open)
  • Continuous Rating: 65A
  • Intermittent Rating: 115A (5 min)
  • Cable Size to Meet Ratings: 6 AWG
  • Maximum Cable Size: 1/0 AWG
  • Terminal Stud Size: 1/4" - 20 (M6)
  • Terminal Stud Torque: 60 in-lb (6.78 Nm)

Specifications

Article number
BS7601
EAN Code
63208507601
SKU
BS7601
