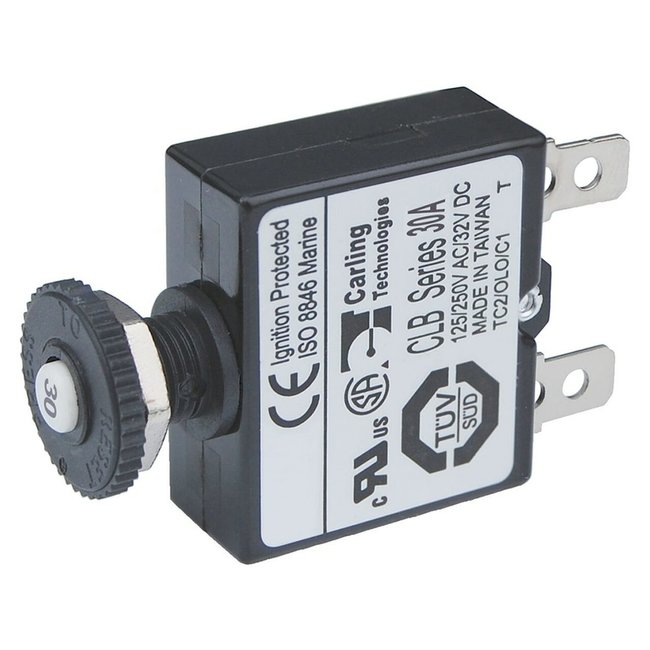

Circuit Breaker Push Button 30amp

Features

• Push-to-reset operation
• Compact design enables high density circuit protection configurations
• “Trip Free” design cannot be held “ON” during fault current condition
• Ignition protected - safe for installation aboard gasoline powered boats
• Branch circuit breakers (can also be used for 24-hour circuit protection)
• Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems weatherdeck waterproof circuit breaker panels, dual battery bank main distribution panels, and 360 distribution panels
• Optional push button waterproof boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking

Specifications

• Maximum voltage: 32 V DC
• Amperage: 30 A
• Mounting: Panel mount 3/8-27 UNS
• Circuit breaker type: Thermal trip, manual push-button reset only
• Terminal type: 1/4 Male quick connect
• Minimum operating temperature: -10 degree C
• Maximum operating temperature: 60 degree C
• Screw terminal torque: 0.68 N-m (6 inch-lb)
• Interrupt capacity: 3000 A @ 14.7 V, 2500 A @ 28 V
• Weight: 0.03 kg (0.06 lb)
• Certificate: CE, ISO 8846 Marine, TUV, UL 1077, UL 1500
