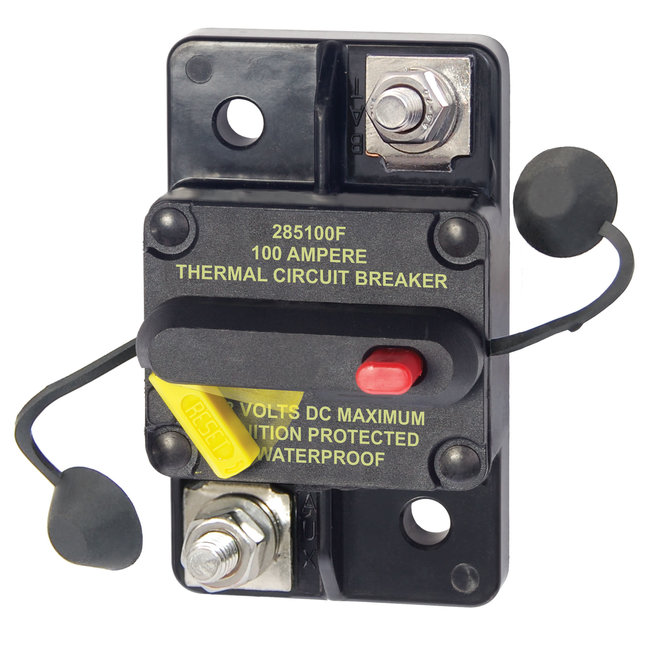

285-Series Circuit Breaker - Surface Mount 100A

• Drop in replacement for 185-Series Circuit Breakers
• Visible reset lever shows open condition
• Ignition protected - Safe for installation aboard gasoline powered boats
• Meets SAE J1171 external ignition protection requirements
• Weather Resistant
• Combines switching and circuit breaker function into one unit*
• "Trip Free" - cannot be held closed after trip
• Do not use as a switch where high inrush currents are expected
• Amperage: 100A
• Maximum Voltage: 48V DC
• Mounting: Surface Mount
• Circuit Breaker Type: Thermally responsive Bi-metal blade
• Interrupt Capacity: 3000A @ 48V
• Minimum Operating Temperature: -40° C
• Maximum Operating Temperature: 85° C
• Circuit Breaker Class: Type III - switchable/manual reset - trip free
• Terminal Stud: M6 (accepts 1/4" Ring Terminal)
• Terminal Stud Torque: 50 in-lb (5.65 Nm)
