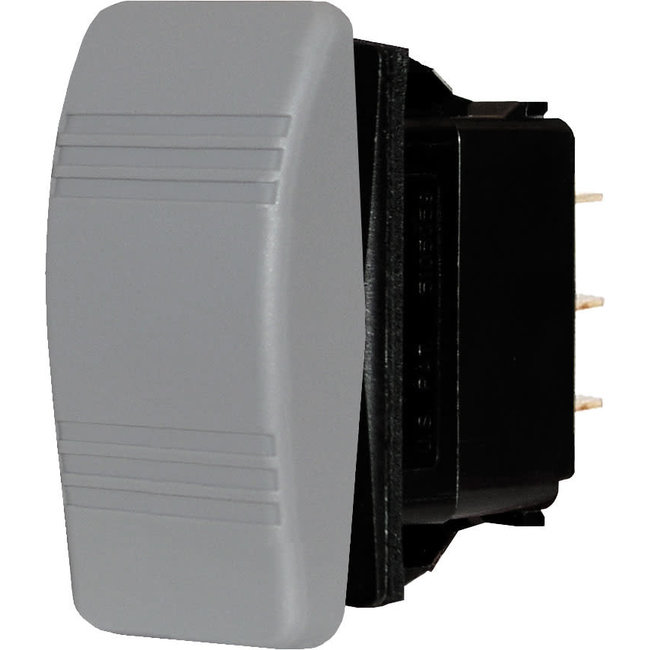

Contura Switch SPST Gray - OFF-ON

• Vibration, shock, thermoshock, moisture and salt spray resistant
• Specially manufactured for mounting in Blue Sea Systems" water resistant panels
• Ignition Protected - Safe for installation aboard gasoline powered boats
• Meets UL1500 and ISO8846 ignition protection requirements
• Action: OFF-ON
• Pole / Throw: SPST
• Actuator Color: Gray - Contura III
• Common Applications: horn or windshield wipers
• Maximum Amperage: 20A @ 12V, 15A @ 24V
• Amperage Operating Current: 18mA (LED)
• Minimum Operating Temperature: -40° C
• Maximum Operating Temperature: 85° C
• Actuator Position to Light LED: ON
• Embedded LEDs: 0
• Lighting: LED rated 100,000 hours 1/2 half
• Seals: Internal and external gasket panel seal
