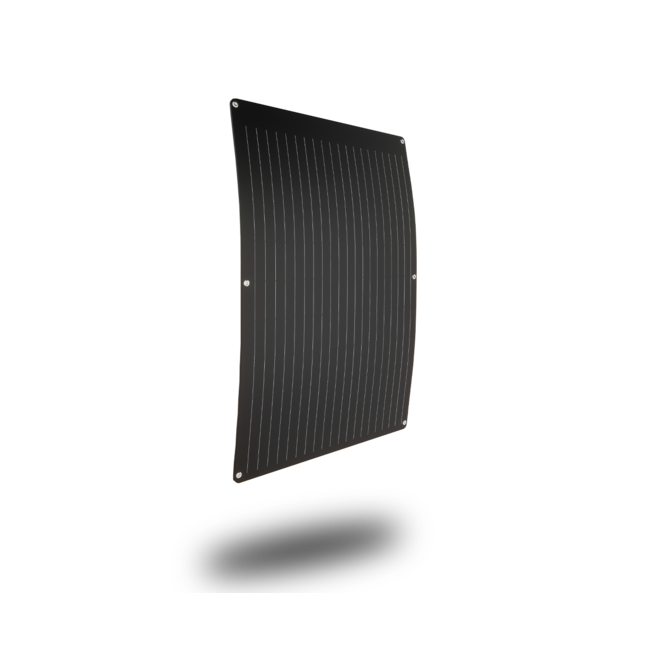

Xantrex Xantrex 110W Flex Solar Panel xx
The Xantrex Solar 110W flex panel is lightweight, durable, and perfect for mounting on moderately curved surfaces. The panel features monocrystalline cells with PERC technology that are up to 12% more efficient than conventional solar cells. Read more..
Product description
Flexible and Light, Ideal for Curved Surfaces
Easy-to-install using the six grommet holes provided or applying adhesives to mount the panel.
The Xantrex Solar 110W flex panel is lightweight, durable, and perfect for mounting on moderately curved surfaces. The panel features monocrystalline cells with PERC technology that are up to 12% more efficient than conventional solar cells.
Dimensions
Solar Flex Panel 110W
Electrical Specifications
- Part Number: 781-0110
- Maximum power-Pmax (W) at STC*: 110
- Maximum power voltage-Vmp (V): 18.9
- Maximum power current-Imp (A): 5.83
- Open circuit voltage-Voc (V): 23.3
- Short-circuit current-Isc (A): 5.95
- Maximum system voltage (V): 600
- Maximum series fuse rating (A): 20
Mechanical
- 110W
- Cell type: Monocrystalline PERC
- Top-layer: ETFE
- Junction box IP rating: IP68
- Connector type: MC4 – type
- Number of cells: 36 (4 x 9)
- Weight: 5.7lbs (2.6kg)
- Dimensions: 39.6in x 26.9in x 0.12in (0.95in thick at junction box) 1005mm x 683mm x 3mm (24mm thick at junction box)
