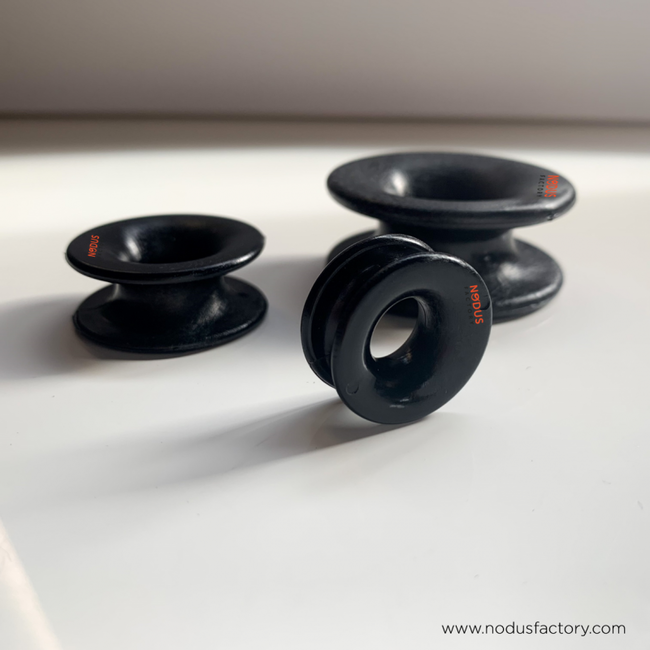

Nodus Factory FR 20 Low Friction Ring Resine
C$16.95Excl. tax
In stock
FR® the Nodus Factory® friction ring is self-lubricating, very light, reliable and strong. The Nodus friction ring is used in numerous applications and for soft types of rope. Read more..
Product description
FR® the Nodus Factory® friction ring is self-lubricating, very light, reliable and strong. The Nodus friction ring is used in numerous applications and for soft types of rope.
You can't use this product to haul your halyards.
+ USES
- Mast foot, in-hauler
- Barber, in-haulers or as spare pulley
- Tackle (Mainsail, vang, running backstay, etc.)
- Hoists (mainsail, vang, running backstay,…etc)
Product Details
Product Name | Safe Working Load | Ø A | Ø B | Ø C | Ø D | Ø Rope Recommended | Weight |
| Angle | 0° | Halyard/Sheets | |||||
| Low Friction | KG | mm | mm | mm | mm | mm | gr |
| FR 10 | 900 | 7 | 9 | 12 | 24 | 4/6 | 2 |
| FR 14 | 1200 | 9 | 13 | 15 | 34 | 6/8 | 4 |
| FR 20 | 1600 | 12 | 19 | 22 | 49 | 8/12 | 16 |
| High T° Friction | KG | mm | mm | mm | mm | mm | gr |
| FR 14 HT° | 1600 | 9 | 13 | 15 | 34 | 6/8 | 6 |
| FR 20 HT° | 2500 | 12 | 19 | 22 | 49 | 8/12 | 24 |
Reviews
0 reviews
Specifications
Article number
20111
EAN Code
3701486402278
SKU
20111
