EV-200 Linear Pilot Sail Boat

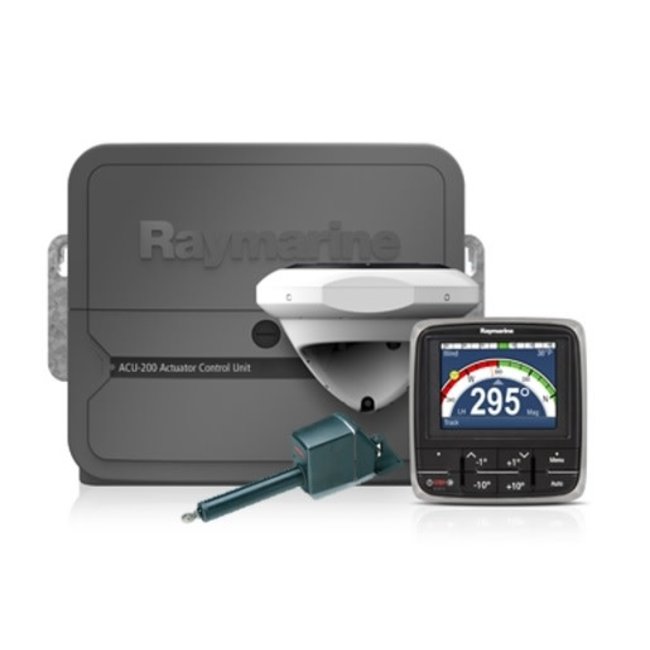

Pack Contents:

EV1 Sensor Core

The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems.

SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.

ACU-200

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus.

p70 Autopilot Control Head (Sail)

The p70 autopilot control head is a push-button operation controller designed primarily for sailboats. Advanced LED backlighting offers low power consumption and delivers vibrant color and contrast. Wide horizontal and vertical viewing angles ensure the display can be seen clearly from acute positions.

The p70 control head also features the LightHouse user interface and a start up wizard to help you configure the pilot quickly and easily.

Type 1 Mechanical Linear (12V)

The outstanding design of the Raymarine linear drive unit provides:

• powerful thrust, fast hardover times and quiet operation
• low backdrive force, to minimize the drive’s effect on the boat’s steering when the autopilot is in standby
• a powerful electric motor controlled by an electromagnetic fail-safe clutch, using a high tensile belt drive and epicyclic gearbox
• high performance for minimum current consumption

Evolution Cabling Kit

The Evolution SeaTalkng cable kit contains:

• ng Power Cable (0.4m)
• 1 x SeaTalkng Backbone Cable (5m)
• 1 x SeaTalkng Spur Cable (0.4m)
• 1 x SeaTalkng 5-way Connector Block
• 2 x SeaTalkng T-piece Connector
• 2 x SeaTalkng Terminator
