EV-200 Hydraulic Pack

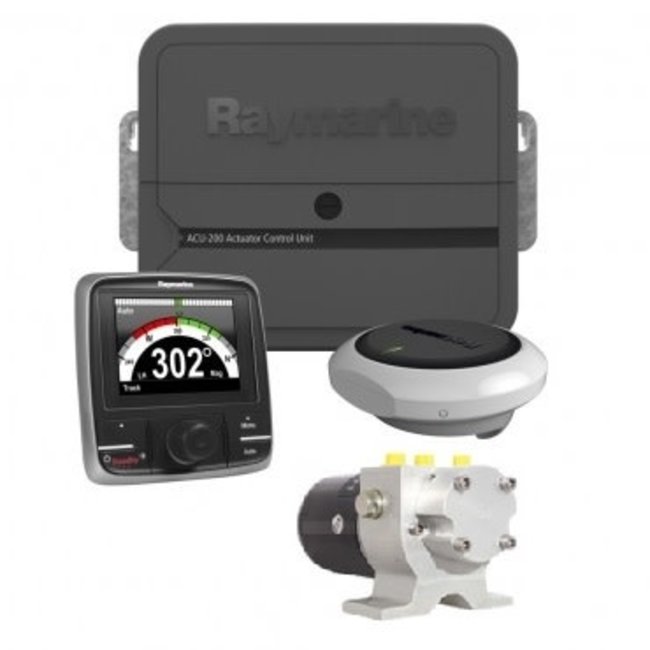

Pack Contents:

EV1 Sensor Core

The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.

ACU-200

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus.

p70 Autopilot Control Head (Sail)

The p70 autopilot control head is a push-button operation controller designed primarily for sailboats. Advanced LED backlighting offers low power consumption and delivers vibrant color and contrast. Wide horizontal and vertical viewing angles ensure the display can be seen clearly from acute positions.

The p70 control head also features the LightHouse user interface and a start up wizard to help you configure the pilot quickly and easily.

Type 1 Hydraulic Pump (12V)

The Type 1 Hydraulic Pump is intended to operate the boat’s steering mechanism as part of a Raymarine autopilot system. It is primarily designed for use on boats with an existing hydraulic steering system. Alternatively, you can use this pump on a boat with mechanical steering in conjunction with a secondary steering ram.

The hydraulic pump contains a precision gear pump and a check valve driven by a servo motor.

Evolution Cabling Kit

The Evolution SeaTalkng cable kit contains:

• ng Power Cable (0.4m)
• 1 x SeaTalkng Backbone Cable (5m)
• 1 x SeaTalkng Spur Cable (0.4m)
• 1 x SeaTalkng 5-way Connector Block
• 2 x SeaTalkng T-piece Connector
• 2 x SeaTalkng Terminator
