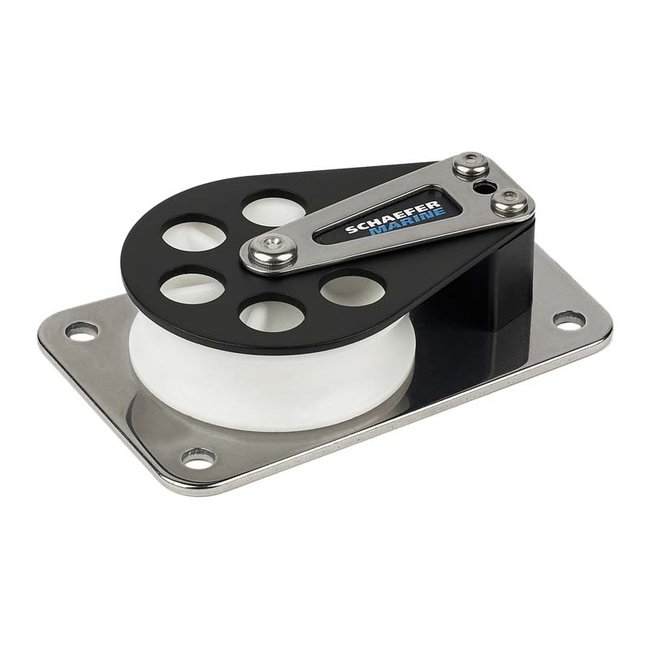

7 Series Flat Base/Alum Cheek/Delrin Sheave

7 Series Cheek Block with anodized Aluminum cheek. Delrin(tm) sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.

• Sheave Diameter 2-3/8" (60 mm)
• Max Line 1/2" (13 mm)
• L 4-3/8" (111 mm)
• W 2-3/4" (70 mm)
• H 1" (25 mm)
• Fasteners (4) 1/4" RH (6 mm)
• C/C 3-5/8" (92 mm)
• SWL 2250 lbs. (1020 kg)
• Weight Alum. 9.6 oz. (272 g)
