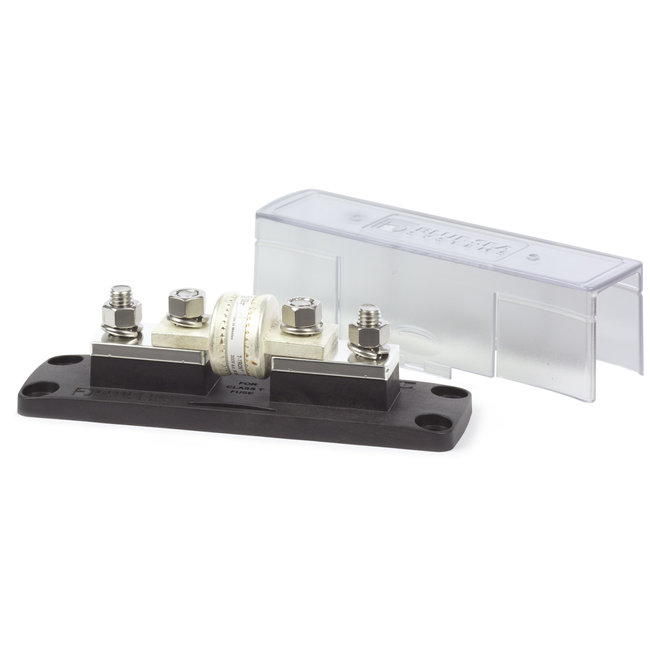

Class T Fuse Block with Insulating Cover - 225 to 400A

• The fuse system recommended by most inverter manufacturers for high speed response to short circuits
• Clear insulating cover, satisfies ABYC/USCG requirements
• For use on systems up to 160 Volts DC
• Large 3/8"-16 stud terminals accept ring terminals for wire up to 4/0 AWG
• Large heat dissipating tin-plated copper mounting blocks
• Two # 8 accessory terminals located on each end
• Fuse sold separately
• Maximum Amperage: 400A
• Maximum Voltage: 160V DC
• Fuse Mounting Blocks: Tin-Plated Copper
• Maximum Cable Size: 4/0 AWG
• Maximum Torque: 190 in-lb (21.47 Nm)
• Mounting Holes: Accept 1/4 (M6) Screw
• Terminal Stud Size: 3/8" - 16 (M10)
