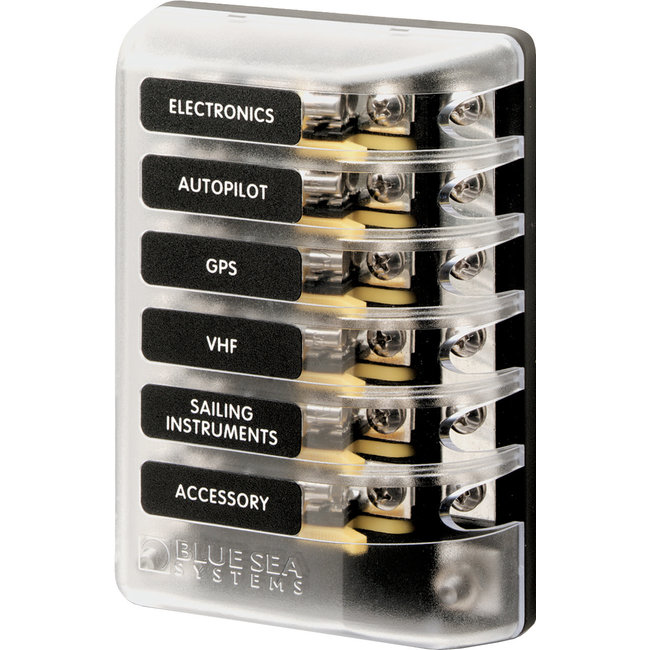

ST Glass 6 Circuit Fuse Block with Negative Bus and Cover

• Clear insulating cover with label recesses for accept Large Format Labels
• Cover insulates all conductive parts, satisfying ABYC/USCG requirements and storing spare fuses
• Tin-plated copper buses and Phosphor Bronze fuse clips give 30 Ampere rating per circuit
• Accepts AGC (Fast Acting), MDL (Time-Delay) and all other 3AG Glass Fuses
• Maximum Amperage: 100A per block, 30A per circuit
• Maximum Voltage: 32V DC
• Mounting: #8 Screw (M4)
• Negative Bus: Yes
• Base Material: Reinforced Polycarbonate
• Cover Material: Polycarbonate
• Screw Terminal Type: #8-32 with Captive Star Lockwasher
