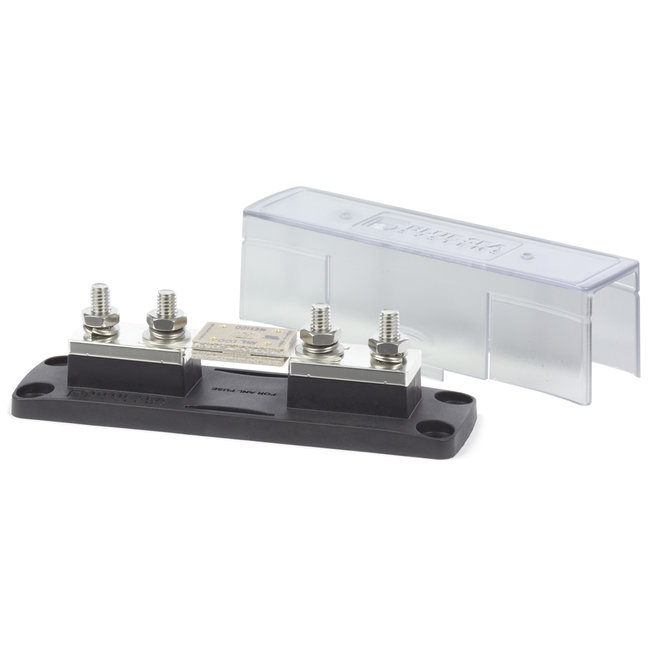

ANL Fuse Block with Insulating Cover - 35 to 750A

• Cover included
• Accepts 5/16" (M8) ring terminals
• For use on systems up to 32 Volts DC
• Swing out design allows replacement of the fuse without removing fasteners
• Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact
• UL 94-V0 base resists high heat
• Insert molded studs ensure secure fuse mounting
• Insulating cover satisfies ABYC/USCG requirements
• Cover breakouts allow wire access in any direction
• Fuse sold separately
• Maximum Voltage: 32V DC
• Base Material: Reinforced Polycarbonate
• Fuse Mounting Blocks: Tin-Plated Copper
• Maximum Cable Size: 4/0 AWG
• Maximum Torque: 107 in-lb (12.09 Nm)
• Terminal Stud Size: 5/16" - 18 (M8)
