Fuse Block St Blade 4 Circ BMT
C$69.95Excl. tax
In stock
ST Blade Battery Terminal Mount Fuse Block Kit Mounts on the battery terminal stud Screw terminals for securing wires Nylon insulated ring terminals included for each screw terminal Accepts small form Read more..
Product description

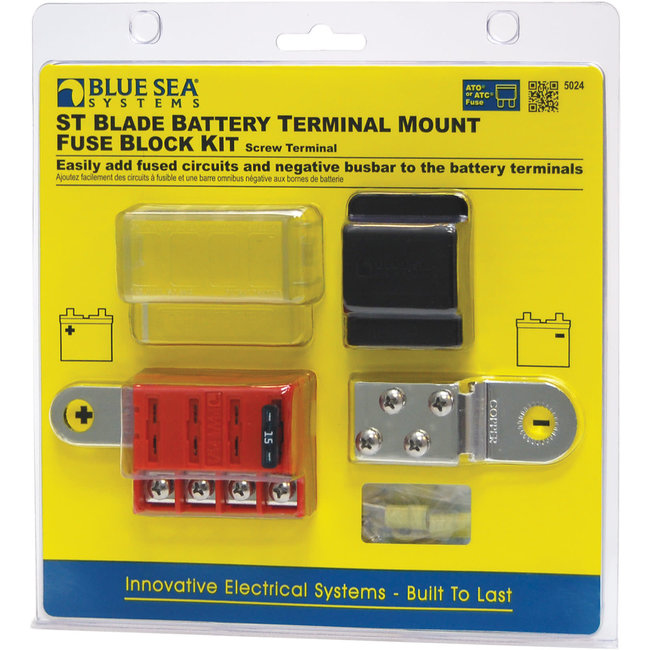

ST Blade Battery Terminal Mount Fuse Block Kit
- Mounts on the battery terminal stud
- Screw terminals for securing wires
- Nylon insulated ring terminals included for each screw terminal
- Accepts small format circuit labels
- Insulating cover meets ABYC/USCG insulation requirements
- Ignition Protected–meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
- Includes a 4-circuit negative busbar
- Includes write on labels
- Includes four 16-14 AWG and four 12-10 AWG Nylon insulated ring terminals
- Circuits: 4
- Maximum Amperage: 100A per block, 30A per circuit
- Maximum Voltage: 32V DC
- Bus Material: Tin-Plater Copper C11000
- Mounting Hole: 3/8" [M10] stud
- Screw Terminal Type: #8-32
