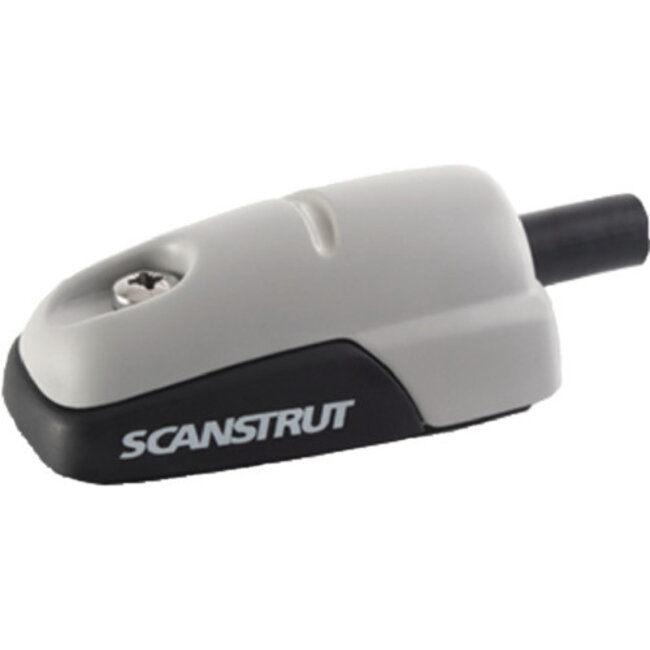

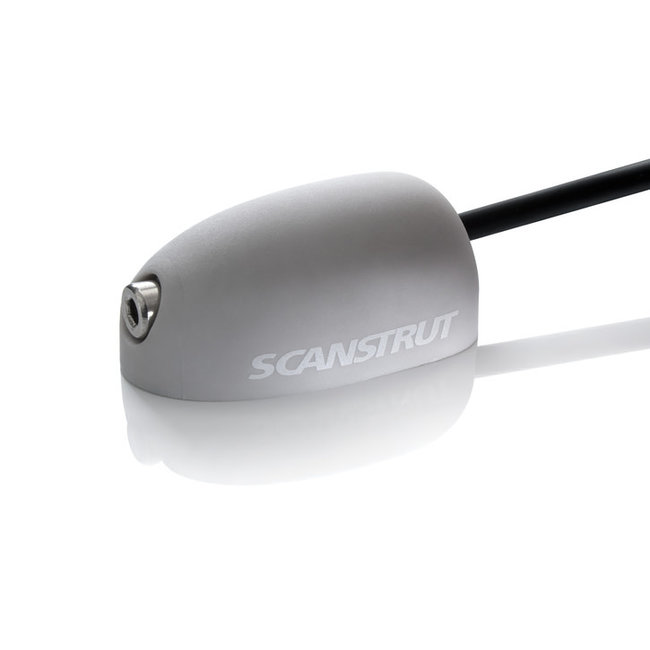

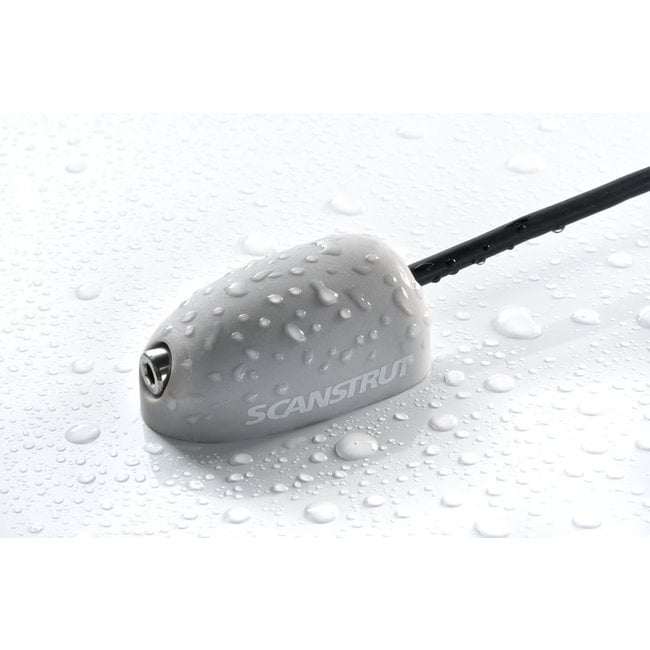

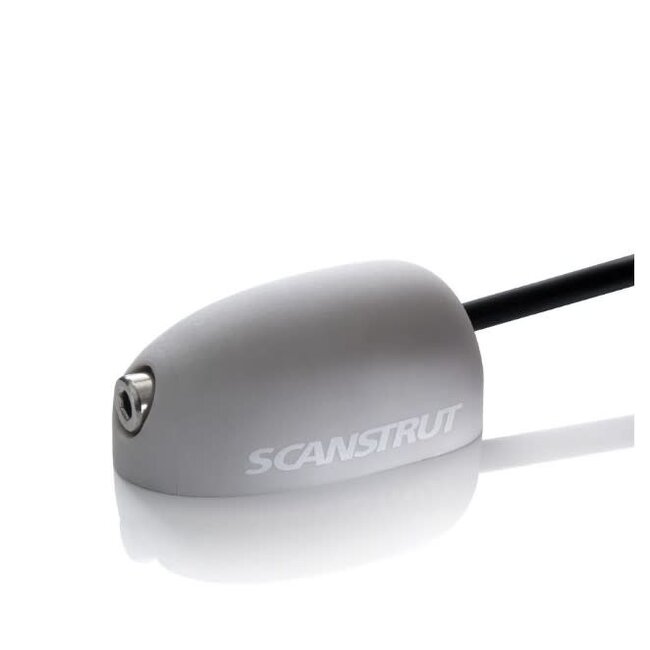

DS-H6 Plastic Cable Seal

Horizontal entry cable seal – For cables from 2-6mm (0.08"-0.24")

For Waterproof Cable Routing

The only guaranteed and proven watertight installation for your antenna and navlight cables! The range provides waterproof cable routing and is produced in high impact plastic and 316 stainless steel with options for 16mm to 40mm connectors, making it ideal for almost every installation.

Features:

Watertight installation

Tapered bung forms watertight seal. All units are supplied with a closed-cell base seal - 100% waterproof. All models have been IPX6 and IPX7 tested and approved.

Easy and reliable installation

Captive nuts make for easy assembly and also allow reliable repeat installations. Each unit supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.

No need to remove cable connectors

Split-seal option does not require connector removal during install.

Multi-functional dome shape

Aesthetic dome-shaped profile provides a stronger, impact-resistant design (no sharp edges to hit your foot on!) and outer dome provides additional water shield.

Your choice of materials

30% Glass-filled Nylon – UV-stable, hard-wearing or 316 stainless version available.
