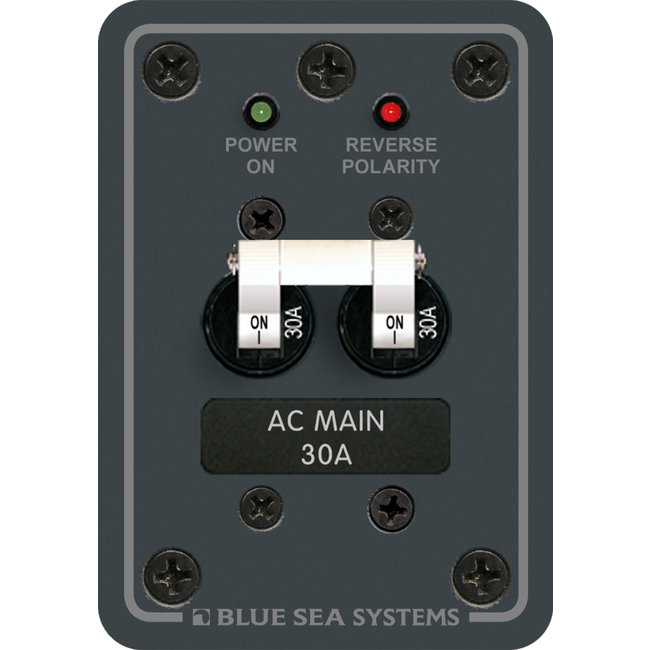

AC Main 30A

• Red reverse polarity indicating LED
• Safety ground screw on panel back
• Combines switching and circuit protection into a single device
• "Trip Free" design cannot be held "ON" during fault current condition

Specifications

• Nominal Voltage: 120V AC
• Maximum Voltage: 277V AC, 65V DC
• Final Panel Finish: 2-part Polyurethane slate gray finish
• Panel Material: Heavy 1/8" aluminum 5052 alloy
• Primary Finish: Mil-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
• Height: 3.75in (95.25 mm)
• Width: 2.63in (66.8 mm)
