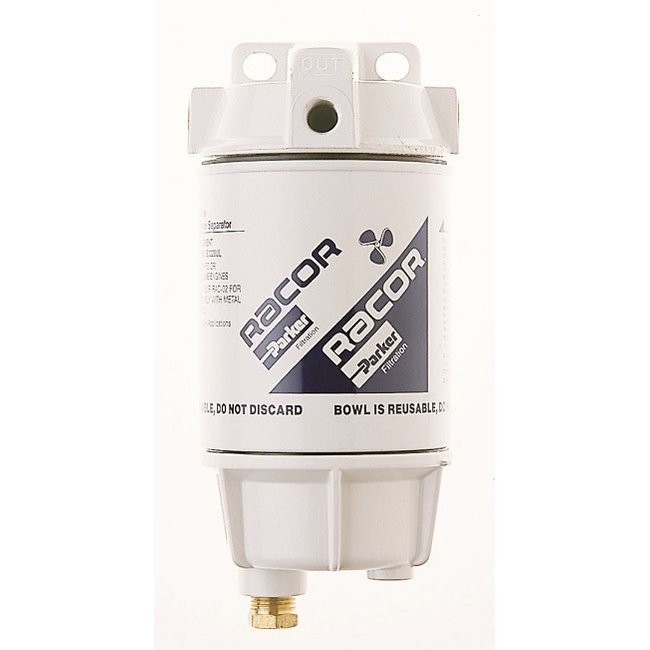

Racor 320R-RAC-02 Gas Spin-On Filter with Metal Bowl 60 GPH 10 Micron
Being on the water is fun, having water in your fuel is not. And more than ever today's high-performance gasoline inboard and outboard engines require clean, dry fuel.
Racor filters offer the improved features and peace of mind that come with our quality fuel filter/water separators.
This 10 Micron Racor Gasoline Spin-On Fuel Filter / Water Separator with Metal Bowl gives owners of gasoline engines smoother operation, longer life and easier servicing. - Maximum flow rate: 60 GPH
- Replaces Quicksilver #C-35-60494-1 Element, and bowl
- Metal bowl unit for inboard/outboard powered boats meets 33 CFR and USCG regulations
- High contaminant holding capacity replaceable elements provide a long service life
- Corrosion-resistant coatings and construction
- Ports available: 1/4"-18 NPTF
- 10 micron Aquabloc® media is standard; 98% efficient at 10 microns per SAE test procedures
- UL listed and meet ABYC, ASTM, ISO and other global engine room requirements
- Gasket and o-ring materials designed for gasoline use
- Port Size:1/4”-18 NPTF
- Micron Rating:98% @ 10 Micron
- UL Certification:Yes
- Filtered Medium:Gasoline
- Bowl Material:Aluminum Bowl
- Integral Primer Pump:No
- Flow Rate:60 gph / 227 lph
- Product Series:Marine Spin-on FF/WS, Gasoline Spin-on
- Brand:Racor
- Mounting Type:Bracket Included
- Clean Pressure Drop:0.6 psi, 4.19 kPa
- Compatible Element:S3228TUL = 10 micron
S3227 = 10 micron
S3228SUL = 2 micron - Filter Element Type:10 Micron Aquabloc Spin-on
- Height:9.0 in / 22.9 cm
- Width:4.0 in / 10.2 cm
- Depth:4.0 in / 10.2 cm
- Weight:2.0 lb / 0.5 Kg
- Maximum Operating Pressure:7 psi / 48.3 kPa psi
- Head Material:Power Coated Aluminium Alloy
- Number of Ports:2 Inlet / 1 Outlet
- Operating Temperature:-40 to 250°F / -40 to 121°C °F
- Maximum Fluid Temperature:190°F / 88°C °F
|
