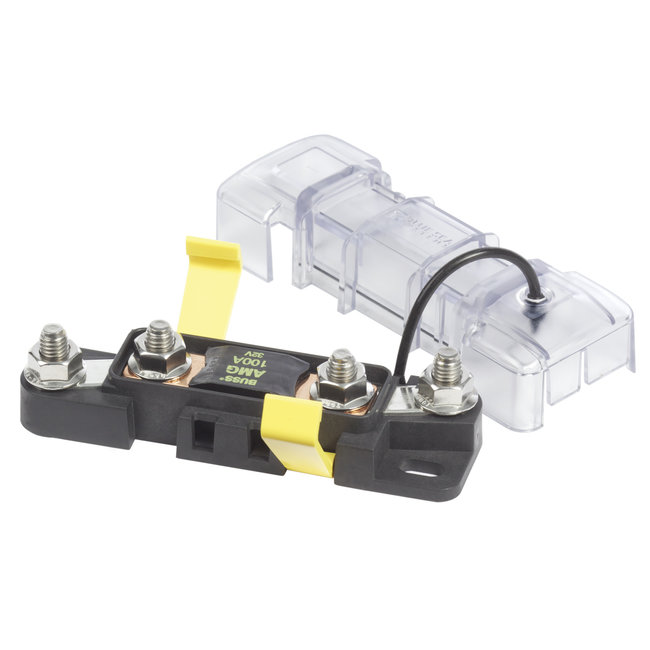

MEGA®/AMG® Safety Fuse Block

• Ignition protected for installation aboard gasoline or diesel powered boats
• Sealed cover protects fuses from the harsh marine environment
• Insulating cover satisfies ABYC/USCG insulation requirements
• Cover breakouts allow wire access in any direction
• 300A maximum with 4/0 cable
• Accepts Blue Sea Systems Square Format standard or custom label
• Fuses sold separately
• Maximum Amperage: 300A
• Maximum Voltage: 32V DC
• Recommended Stud Torque: 120 in-lb (13.56 N·m)
• Terminal Screw: 5/16" (M8)
• Terminal Stud Size: 5/16" (M8)
