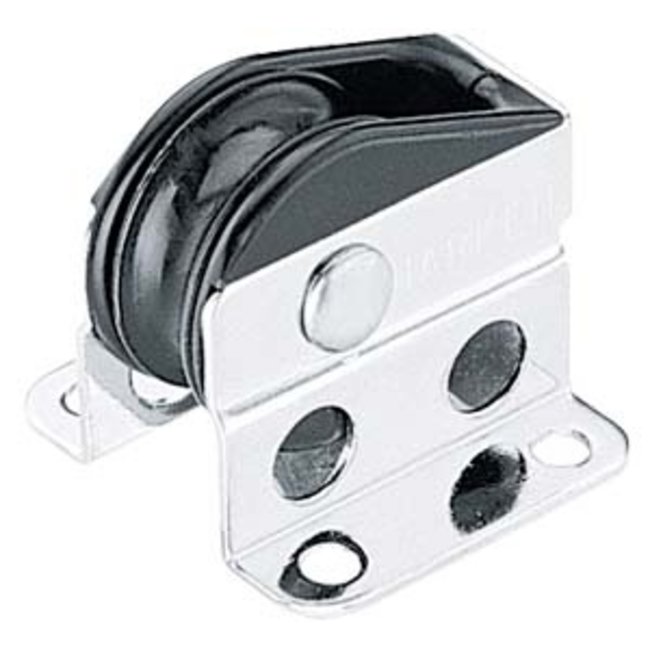

Upright Lead Bullet

Low-friction Bullet blocks lead control lines aft. They are compact and lightweight, with fast trim and release under high or low loads. A range of styles lets these blocks adapt to almost all control line applications.

• Sheave Ø (mm) 29 mm
• Sheave Ø (in) 1 1/8 in
• Length (mm) 38 mm
• Length (in) 1 1/2 in
• Maximum working load (kg) 136 kg
• Maximum working load (lb) 300 lb
• Breaking load (kg) 907 kg
• Breaking load (lb) 2000 lb
