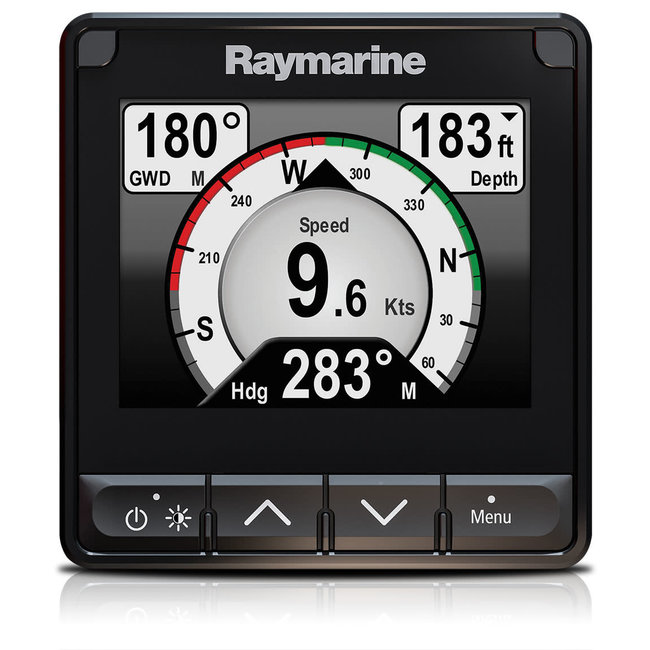

Raymarine i70s Multifunction Colour Display
Raymarine i70s Multifunction Colour Display

Raymarine i70s Multifunction Colour Display

C$799.95Excl. tax
In stock

The i70s multifunction gives you the flexibility to display instrument and navigation data that is most important to you. Read more..

Product description

New i70s Multifunction Instrument

Maximum Visbility and Maximum Versatility

The i70s multifunction gives you the flexibility to display instrument and navigation data that is most important to you. Equipped with a bold and bright 4.1” display the i70s is easy-to-customize with digital, analog and graphical displays of depth, speed, wind and more. Add the i70s to your existing Raymarine instrument system or create a network of i70s displays and sensors, the choice is yours.

Key Features

  • 4.1" super bright oversized LCD for maximum visibility
  • All weather optically bonded display technology delivers brighter colors, sharper contrast, and a wide viewing angle
  • New glass bridge industrial design compliments Raymarine eS and gS Series multifunction displays
  • Simple user interface with sculpted rubber keypad for precise operation in all conditions
  • Customizable data displays of depth, speed, wind and more
  • SeaTalkng networking for seamless connectivity to Raymarine systems and NMEA2000* networks
  • NMEA2000 connectivity* for engine, environment fuel and navigation data
  • Convenient AIS repeater mode allows you to visually track nearby AIS targets
  • Combine the i70s with the ITC-5 instrument transducer convertor and connect to analog depth, speed, and wind sensors
  • Network the i70s with Airmar DST800 transducers and the new in-hull P70s smart transducer
  • Supplied with both black (eS Series style) & (e Series style) gunmetal bezels and protective suncover

Intuitive LightHouse User Inferface

The i70s places frequently used navigation functions right at your fingertips. The LightHouse instrument interface is consistent with Raymarine LightHouse multifunction displays, so Raymarine MFD users will feel right at home with the i70s.

Networking

Raymarine i70s allows for connectivity to the following on board networks:

  • First generation SeaTalk networks using a SeaTalk to SeaTalkng adapter cable
  • Current generation SeaTalkng networks
  • NMEA2000 networks using a SeaTalkng to DeviceNet adaptor
  • In addition to flexible networking capability the i70s features user-selectable data sources, for integration with multi-sensor networks.
AIS Repeater

Display AIS targets from NMEA 2000 AIS receivers. View the closest 25 AIS-equipped vessels and select individual targets to obtain vessel information.

Transducer Connectivity

Pair i70s instruments with the innovative iTC-5 instrument transducer converter for seamless integration with analog depth, wind, speed, compass and rudder transducer. Alternatively, you can network the i70s to DST800 and p79s Airmar smart tranducers.

Specifications

  • Dimensions: 110m (4.33in) x 115mm (4.53in)
  • Nominal Voltage: 12 V DC
  • Voltage Range: 9 to 16 V dc
  • Power Consumption: 1.7 Watts
  • Mounting Method: Surface mount
  • LCD Brightness: 1,200cd/m2
  • Display: 4.1" TFT LCD 16 bit colour (64K colours) | 320 x 240 pixels
  • Colour palettes: Four colour pallettes - two day, invesrse and red/black
  • Operating Temperature: -20° to 55° (-4°F to 131°F)
  • Storage Temperature: -30° to 70° (-22°F to 158°F)
  • Relative Humidity and Waterproofing: 93% max. IPX6 IPX7
  • Connections: 1 x SeaTalkng® connector
  • Conformance: NMEA 2000 certification pending | Europe 2004/108/EC | Australia and New Zealand C-Tick compliance level 2
  • Languages: Extensive Language support: 20 languages available

What's In The Box?

  • Documentation
  • Panel Seal Gasket
  • 400mm (15.7in) SeaTalk® spurcable (A06038)
  • i70s Instrument Display (supplied with keymat and black bezel (A80353) fitted)
  • Suncover (A80357)
  • Spare gunmental bezel (A80354)
  • Mounting screws x4

Specifications

Article number
E70327
EAN Code
72319381229
SKU
E70327

Reviews

0 reviews

Specifications

Article number
E70327
EAN Code
72319381229
SKU
E70327
